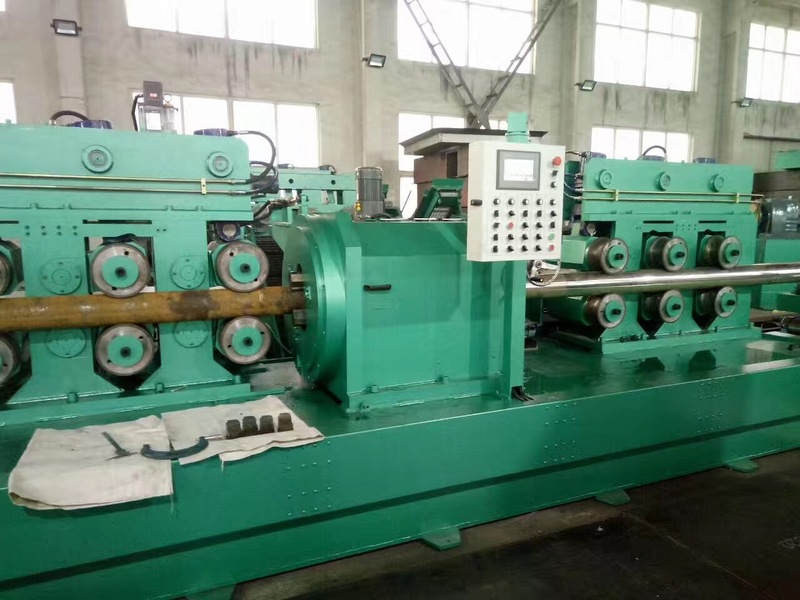

BP-100 Bar Peeling Machine
BP-100 Bar Peeling Machine
- Detail
- Parameters
The metal material our equipments are able to process includes as follow,Ferrous Metal: Stainless Steel, Bearing Steel, Spring Steel, Tool Steel, alloy steel,free cutting steel, valve steel, gear steel,etc.
Nonferrous Metal: copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Our equipments are widely used in the field of slender shaft, hydraulic pneumatic components, bearings, springs, auto parts, textile machinery, cold forging raw materials processing, instrumentation, steel pipes, cutting tools, construction machinery, sports equipments, other mechanical equipments manufacturing processes, copper industry, titanium industry, aluminum industry, magnesium industry, petroleum, electricity, bridges construction and other industries.
| Unit type | BP100 |
| Main power source | AC 380V 50HZ |
| Control source | AC 220V 50HZ |
| System control power | DC24V |
| Hardness | hot rolled material ≤HB310 |
Peeling length (standard configuration：6m) | ≧2.5m |
Peeling diameter range size | ∮21-102mm |
Peeling diameter range size (finished product) | ∮20-100mm |
| The knife dish form | four knife |
| Blade adjustment mode | adjust the cutter online without stopping |
| Speed of mainshaft | 300-1000r/min |
| Peeling depth(diameter) | 0.6-2mm |
| Feeding speed | 0.5-8m/ min |
| Diameter tolerance | h9-h11 |
| Surface roughness | Ra1.6-3.2 |
| Out of roundness | ≤0.05 |
| Precision | ≤0.1 |
| Straightness (raw material) | ≦3‰ |
| Straightness (finished product) | ≦3‰ |
Loading frame and unloading frame's length (standard configuration) | 6m |
| Total power | 76KW |
| Main motor power | 55KW |
| Feed motor power | 3.0KW*2 |
| Pull out motor power | 3.0KW*3 |
| Hydraulic pressure station motor power | 3.0KW*1 |
Chip removal device motor pwer | 0.75KW*1 |
| Motor power of the shrink knife | 0.4KW*1 |
Motor power of upper and lower roller table | 1.1KW*1 |
Weight | 12T |
| Boundary dimension | 16.5*4*1.9 |
Constituent part: main machine (clamping and pullout the device), feeding platform, input roller table, output roller table, collection tank, hydraulic system, electrical system, cooling system, automatic chip removal. It can be customized according to your request.
