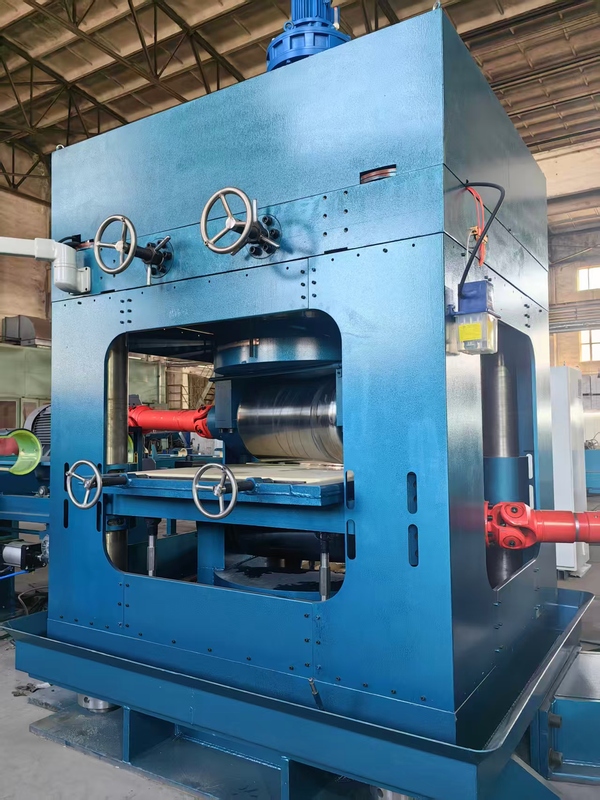

JP160 Straightening Machine Bar Straighteners Tube Straighteners
JP160 Straightening Machine Bar Straighteners Tube Straighteners
- Detail
- Parameters
Straightening machine is that the raw material for the peeling and a special calender straightening straightening machine, it is best, straightening effect of straightener efficiency higher ideal straightening tool, the machine is suitable for all kinds of ferrous and non-ferrous metal rod.
steel bar peeling machine round steel bar peeling machine steel round bar peeling machine reinforced straightening machine rim straightening machine.
| Unit type | JP160 |
| Main power source | AC 380V 50HZ |
| Control source | AC 220V 50HZ |
| System control power | DC24V |
| Raw material requirements | peelingsteel cold drawn steel |
Straightening length | ≧2.5m |
| Straightening diameter range size | ∮70-160 |
| Straightening speed | 1-10m/ min |
| Straightening roll speed | 1-63rpm |
| Surface roughness | Ra1.6-0.8 |
| Diameter tolerance | ≦h8(without the head and end materials of 150mm) |
| Straightness(raw material) | ≦2‰ |
| Straightness(finished product) | ≦0.5‰ |
| Total power | 187KW |
| Main motor power | 90KW*2 |
| Motor power of upper and lower roller table | 1.1KW*2 |
| Go up and down motor power | 4.0KW*1 |
Loading frame and unloading frame's length | 6m |
| Boundary dimension | 16*4.5*4 |
| Weight | 35T |
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* If the equipment fails during the warranty period, we will arrive at the buyer's site in time after receiving the notice.
